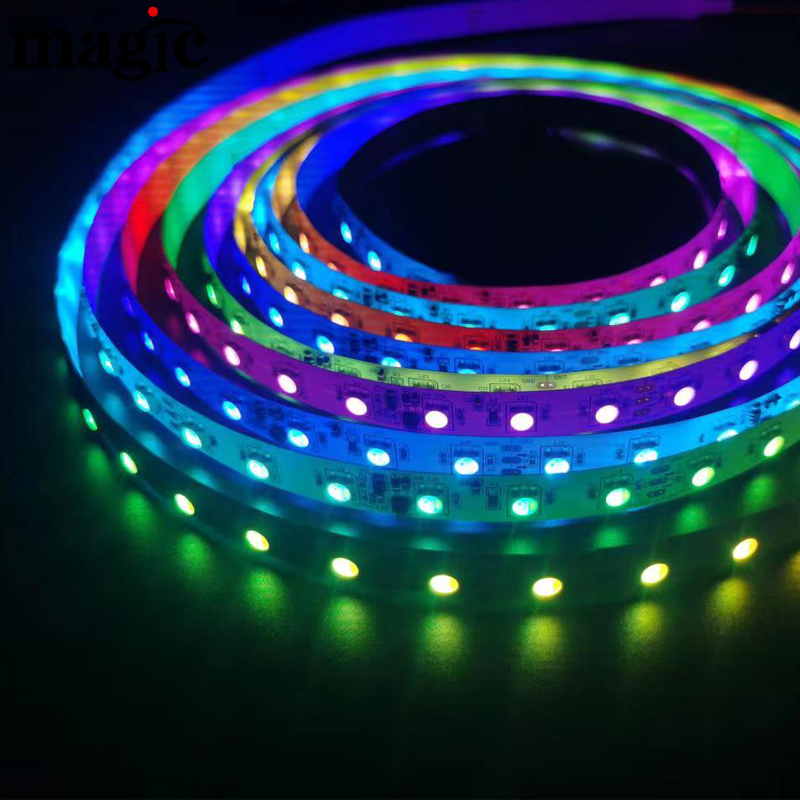

SK6812 RGBW LED Strip Light - Magic HY-5050-60 (12V Smart Pixel Light)
Brand: Magic | Model: HY-5050-60 | IC Chip: SK6812 | Input Voltage: DC12V
Product Overview
The SK6812 RGBW LED Strip Light, model HY-5050-60 from Magic Lighting, is a high-performance, digitally addressable light strip that combines red, green, blue, and a dedicated white channel (RGBW) for unparalleled color accuracy and pure white light output. Operating on a safe 12V DC system and utilizing the SPI protocol, this strip allows for individual control of each LED pixel, making it perfect for dynamic lighting effects, architectural accent lighting, and immersive home automation projects.
Key Features
- RGBW Technology: Unlike standard RGB strips, the dedicated white LED chip provides a cleaner, brighter white and enhances pastel color mixing.
- Digitally Addressable (SK6812 IC): Each LED can be controlled independently via a single data line, enabling complex animations and patterns.
- Multiple Control Modes: Compatible with App control (Wi-Fi/Bluetooth), Voice assistants (Alexa/Google), Touch sensors, and traditional Remote/Button control.
- High Durability: Features a copper PCB for better heat dissipation and a flexible FPC base that can be cut to custom lengths.
- IP65 Waterproof Rating: Suitable for both indoor and outdoor use, protecting against dust and low-pressure water jets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | Light Strings / LED Strip |
| Input Voltage | DC12V |
| LED Type | SMD5050 (RGBW 4-in-1) |
| LEDs per Meter | 60 PCS/M |
| Pixels per Meter | 20 Pixels/M (3 LEDs per pixel) |
| IC Chip | SK6812 (Built-in IC) |
| Protocol | SPI (Serial Peripheral Interface) |
| Color Temperature (White Channel) | 3000K (Warm White), 4000K (Natural White), 6000K (Cool White) |
| Luminous Flux | Approx. 800 lm/m |
| CRI (Color Rendering Index) | Ra > 80 |
| Warranty | 2 Years |
Common Applications
- Architectural Lighting: Cove lighting, under-cabinet lighting, and highlighting architectural features.
- Landscape & Outdoor: Garden path lighting, facade lighting, and outdoor entertainment areas.
- Commercial Use: Bar counters, KTV rooms, hotel lobbies, and retail displays.
- Home Automation: Integration with systems like WLED, Home Assistant, and Raspberry Pi for synchronized smart lighting.
- Creative Projects: DIY art installations, custom signage, and PC case modding.
Buying & Installation Guide
What to Consider Before Buying:
- Power Supply: Ensure your 12V power adapter (driver) has sufficient wattage. For a 5-meter strip at 90W/m, a 450W+ power supply is recommended.
- Controller: You will need a compatible controller (e.g., ESP32-based WLED controller) to unlock the full addressable and smart features.
- Waterproofing: If using outdoors or in wet areas, ensure you select the appropriate IP rating (IP65, IP67, or IP68).
Installation Steps:

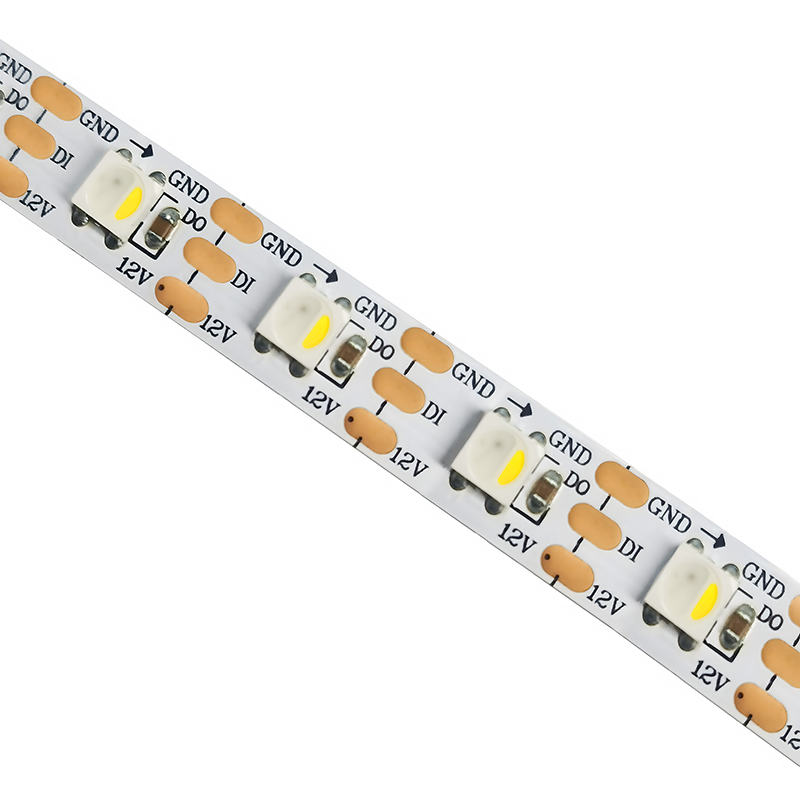

- Cutting: Cut only at the designated scissor marks (usually every 3 LEDs for this model) to avoid damaging the circuit.
- Wiring: Connect the wires correctly: Red (12V+), Black/GND (Ground), Green (Data IN). Use a 3-pin JST-SM connector for easy setup.
- Powering: Connect the strip to the power supply and controller. Always power off when making connections.
- Securing: Use mounting clips or 3M adhesive tape to fix the strip in place. Clean the surface before applying for better adhesion.
Performance & Troubleshooting
Common Issues & Solutions:
- First LED Bright, Rest Flickering/Dim: This indicates a data signal issue. Check your data line connection and ensure the controller output is compatible with SK6812 timing.
- Entire Strip Not Lighting Up: Verify the power supply polarity and voltage. A faulty power adapter is a common cause of complete failure.
- Colors Are Inaccurate: Ensure your controller software is configured for RGBW (4-channel) mode, not just RGB. Using the wrong mode can cause washed-out colors.
- Section of Strip Stops Working: Check for physical damage or a poor solder joint at the cut point. A broken circuit can halt signal transmission.
After-Sales & Warranty
This product typically comes with a 2-year limited warranty from the supplier, Shenzhen Magic LED Lighting Co., Ltd. The warranty covers manufacturing defects but does not cover damage resulting from improper installation, overvoltage, or physical misuse.
Return & Refund Policy:
- Most suppliers accept returns within 7-30 days if the product is defective or not as described.
- Buyers are usually responsible for return shipping costs unless the item was defective upon arrival.
- Always keep the original packaging and invoice as proof of purchase for warranty claims.
