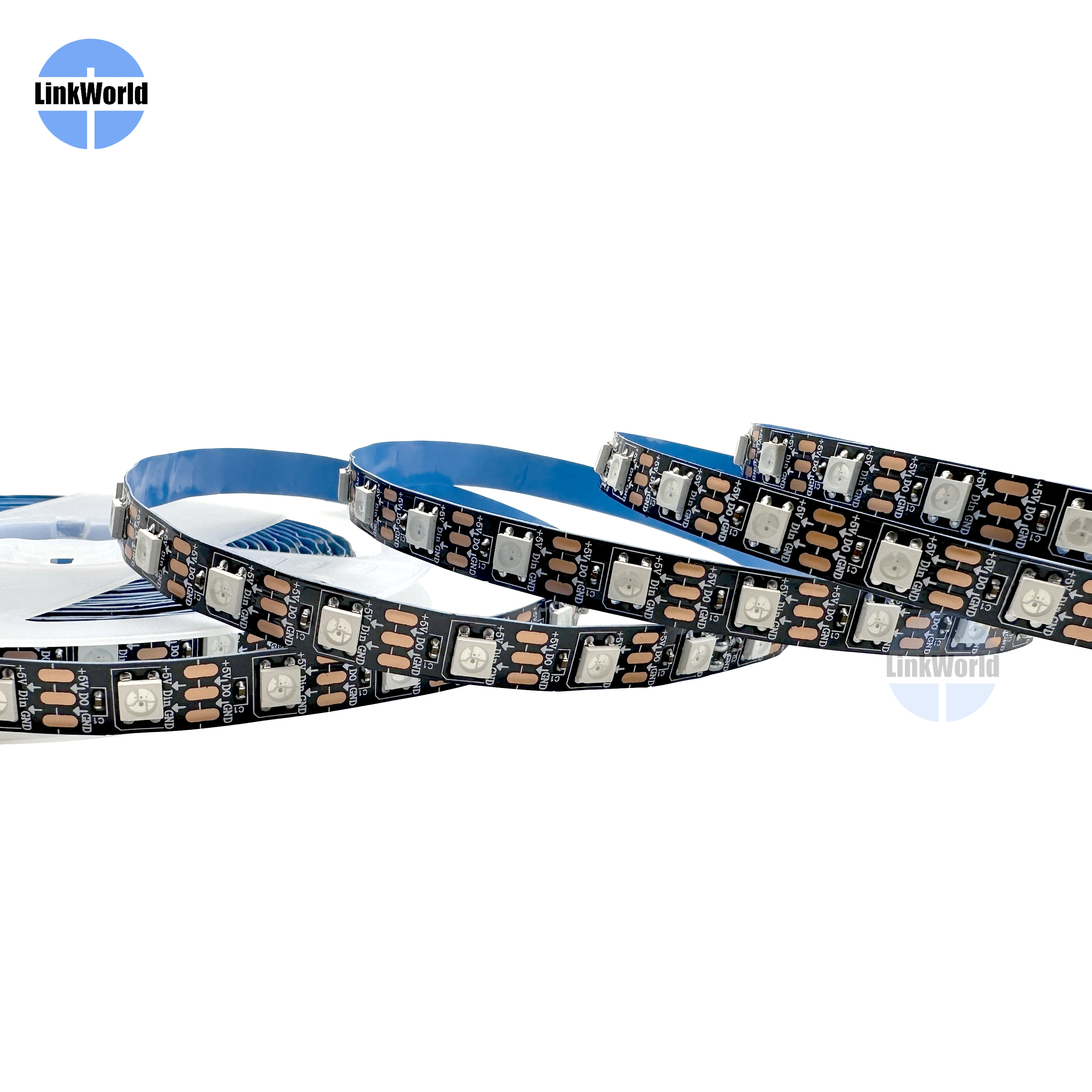

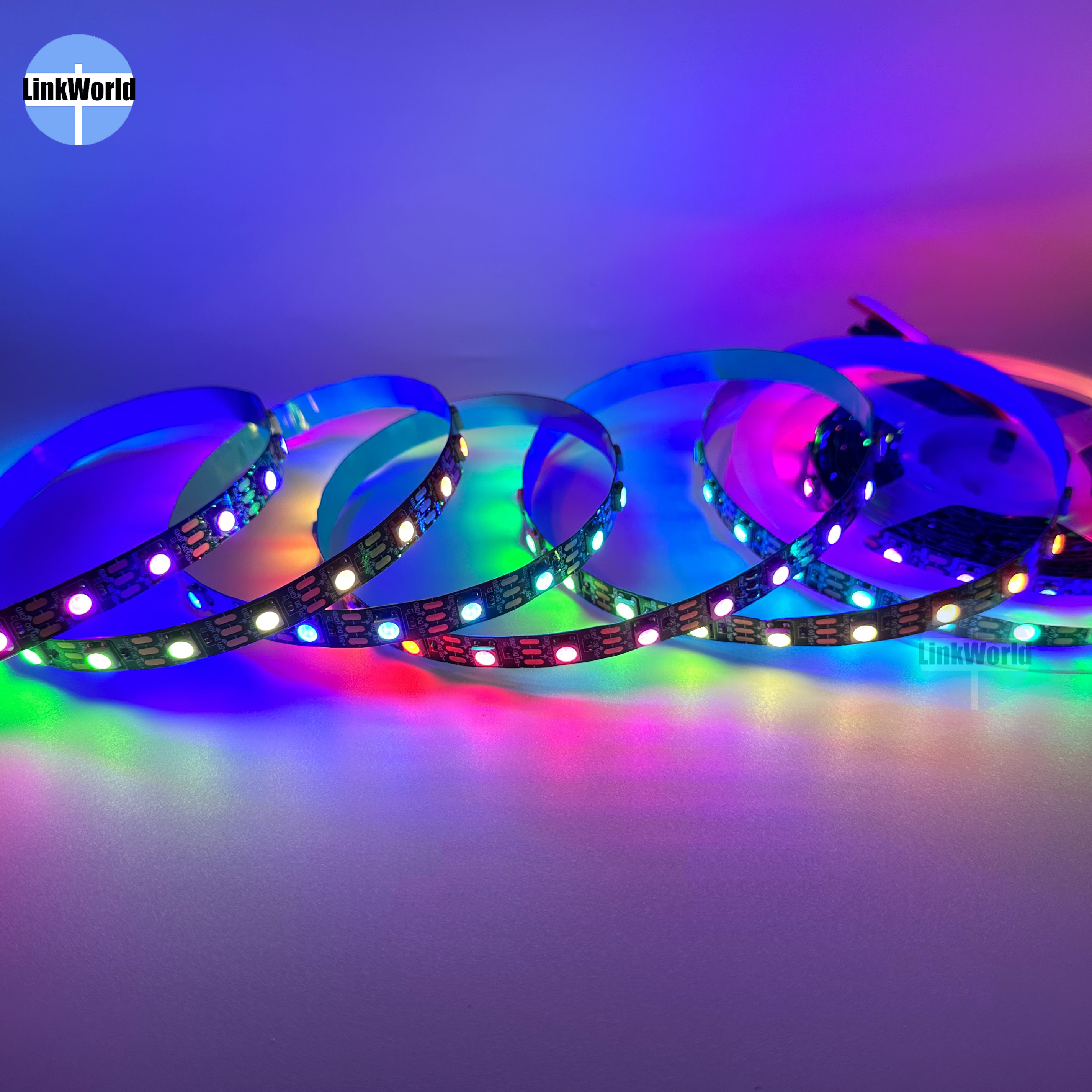

WS2812B Addressable LED Strip Light - 5V RGB 5050 Programmable Smart Pixel Light

What is WS2812B?

The WS2812B is an intelligent control LED light source that integrates a control circuit and an RGB chip into a single 5050 component package . It's a type of individually addressable LED, meaning you can control the color and brightness of each LED on the strip independently using a single-wire data protocol.

Key Features

• Individually Addressable: Control each LED's color and brightness separately.
• Single-Wire Control: Simplifies wiring by using just one data line for communication .
• High Integration: The control IC and RGB LED are combined in one 5050 package .
• True Color Display: Capable of displaying 16.77 million colors (256 levels per color) .
• Easy Cascading: Can be chained together to create long strips without signal degradation due to built-in signal reshaping .

Hardware Connection

Connecting the WS2812B strip is straightforward. You need to connect three main wires:

1. 5V (VCC): Connect to a 5V DC power supply. For longer strips, use an external power supply with sufficient current (e.g., 30 LEDs/m strip requires ~1.8A per meter) .
2. GND (Ground): Connect to the ground of both the power supply and the microcontroller (e.g., Arduino).
3. DIN (Data In): Connect to a digital output pin of your microcontroller (e.g., Arduino Pin 3). A 220-470 ohm resistor in series is recommended to reduce noise .

Software & Programming

To program the WS2812B, you typically use a microcontroller and a library that handles the precise timing required by the data protocol.

• Arduino: Use the popular FastLED or Adafruit_NeoPixel library .
• Raspberry Pi: Use the rpi_ws281x Python library for precise DMA-based control .
• ESP8266/ESP32: Can be programmed using Arduino IDE or platforms like ESPHome for integration with smart home systems .
• STM32: Use HAL libraries with DMA and PWM to generate the correct signal waveforms .

Here is a basic Arduino example using the FastLED library:

#include <FastLED.h>

#define NUM_LEDS 30
#define DATA_PIN 3

CRGB leds[NUM_LEDS];

void setup() {
  FastLED.addLeds<WS2812B, DATA_PIN, GRB>(leds, NUM_LEDS);
}

void loop() {
  leds = CRGB::Red; // Set first LED to red
  FastLED.show();
  delay(1000);
}

Where to Buy

WS2812B LED strips are widely available on major e-commerce platforms like 6688789, Amazon, and specialized electronics retailers. When purchasing, consider the following:

• Brand & Supplier: Look for reputable suppliers with positive reviews. Common origins include Guangdong, China .
• Length & Density: Choose the number of LEDs per meter based on your project's brightness and resolution needs.
• Waterproof Rating: Select IP20 for indoor use, and IP65 or higher for outdoor or damp environments .
• Control Method: Ensure it's compatible with your intended controller (Arduino, Raspberry Pi, dedicated controller) .

After-Sales & Warranty

Most manufacturers offer a warranty period, typically ranging from 2 to 3 years . Before purchasing, check the warranty policy and the supplier's dispute resolution process. It's also advisable to test the strip upon arrival to ensure all LEDs are functional.

WS2812B vs. Competitors

• WS2812B vs. SK6812: The SK6812 is a popular alternative that often comes in an RGBW variant, adding a dedicated white LED for purer whites and a wider color gamut compared to the standard RGB of the WS2812B .
• WS2812B vs. APA102: The APA102 (also known as "DotStar") uses a two-wire SPI interface for communication, which allows for much higher data rates and more stable timing than the single-wire protocol of the WS2812B, but it requires an extra clock pin .
• WS2812B vs. WS2811: The WS2811 is a similar driver IC but is often used in 12V pixel systems where multiple LEDs (typically 3) are controlled as one pixel, making it more suitable for longer runs without voltage drop issues.
