WS2812B 5050 RGB LED Strip Light: The Ultimate Guide for Smart Lighting
Brand: Allledlight | Model: WS2812B-B | Type: Individually Addressable LED Strip
Product Overview
The WS2812B LED Strip Light is a revolutionary smart lighting solution that integrates control circuitry directly into each 5050 RGB LED chip. This allows each pixel (LED) on the strip to be individually controlled via a single data line, enabling the creation of complex animations, dynamic color shifts, and stunning visual effects. It is widely used in home decoration, architectural lighting, advertising, stage effects, and DIY electronics projects due to its high flexibility and programmability.
Core Specifications & Features
- Input Voltage: DC 5V (Note: Not 12V. WS2812B requires a stable 5V power supply).
- LED Type: 5050 SMD RGB (Integrated WS2812B IC).

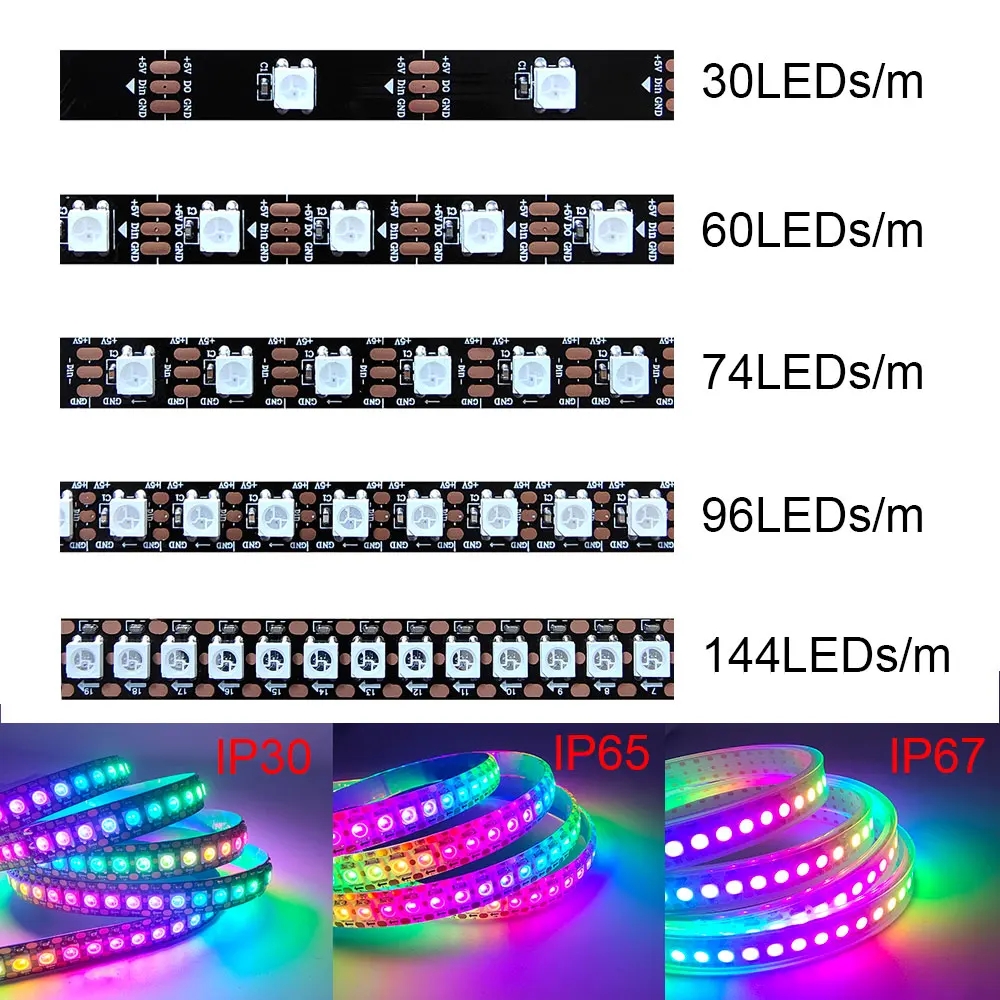

- Pixel Density: Available in 30, 60, 74, 96, or 144 LEDs per meter.
- Control Protocol: Single-wire serial communication (GRB format, high-bit first).
- Waterproof Rating: IP30 (Indoor), IP65 (Dust-tight & Low-pressure water jets), IP67 (Water immersion up to 1m).
- Control Methods: App Control (Wi-Fi/Bluetooth), Remote Control, Voice Control (via smart hubs), Manual Button.
- Beam Angle: 120 degrees for wide, even illumination.
- Lifespan: Up to 30,000 - 60,000 hours.
- Cuttable: Yes, the strip can be cut at designated points (usually every 3 LEDs) to fit custom lengths.
- Certifications: CE, RoHS compliant.
How to Use & Installation Guide
Using WS2812B strips requires a basic understanding of electronics. Here's a simplified setup:
- Power Supply: Use a stable 5V DC power adapter. The current requirement depends on the number of LEDs. For example, 60 LEDs/m at full white brightness can draw up to 3.6A per meter. Always use a power supply with a higher current rating than your calculated need.
- Controller: Connect the strip's data input (DIN) pin to a microcontroller like Arduino, Raspberry Pi, or ESP32.
- Wiring: Connect the power supply's 5V and GND to the strip's VCC and GND. Connect the microcontroller's GND to the strip's GND to ensure a common ground.
- Data Connection: Connect a digital output pin from the microcontroller to the strip's DIN pin. Adding a 220-470 ohm resistor in series on the data line is recommended to reduce noise.
-
Programming: Install libraries like
FastLED(for Arduino) orrpi_ws281x(for Raspberry Pi) to easily control colors and animations.
Purchasing Information
When buying WS2812B LED strips, consider the following:
- Price Range: Typically ranges from $3 to $15 per meter, depending on density, waterproofing, and seller.
- Where to Buy: Available on platforms like 6688789, eBay, Amazon, and specialized electronics retailers.
-
Key Selection Factors:
- Density: Higher density (144 LEDs/m) is better for smooth gradients, while lower density (30 LEDs/m) is cost-effective for ambient lighting.
- Waterproofing: Choose IP65 or higher for outdoor or bathroom use.
- PCB Color: White PCB blends in better on light surfaces, while black PCB offers higher contrast when the lights are off.
Reviews & Common Applications

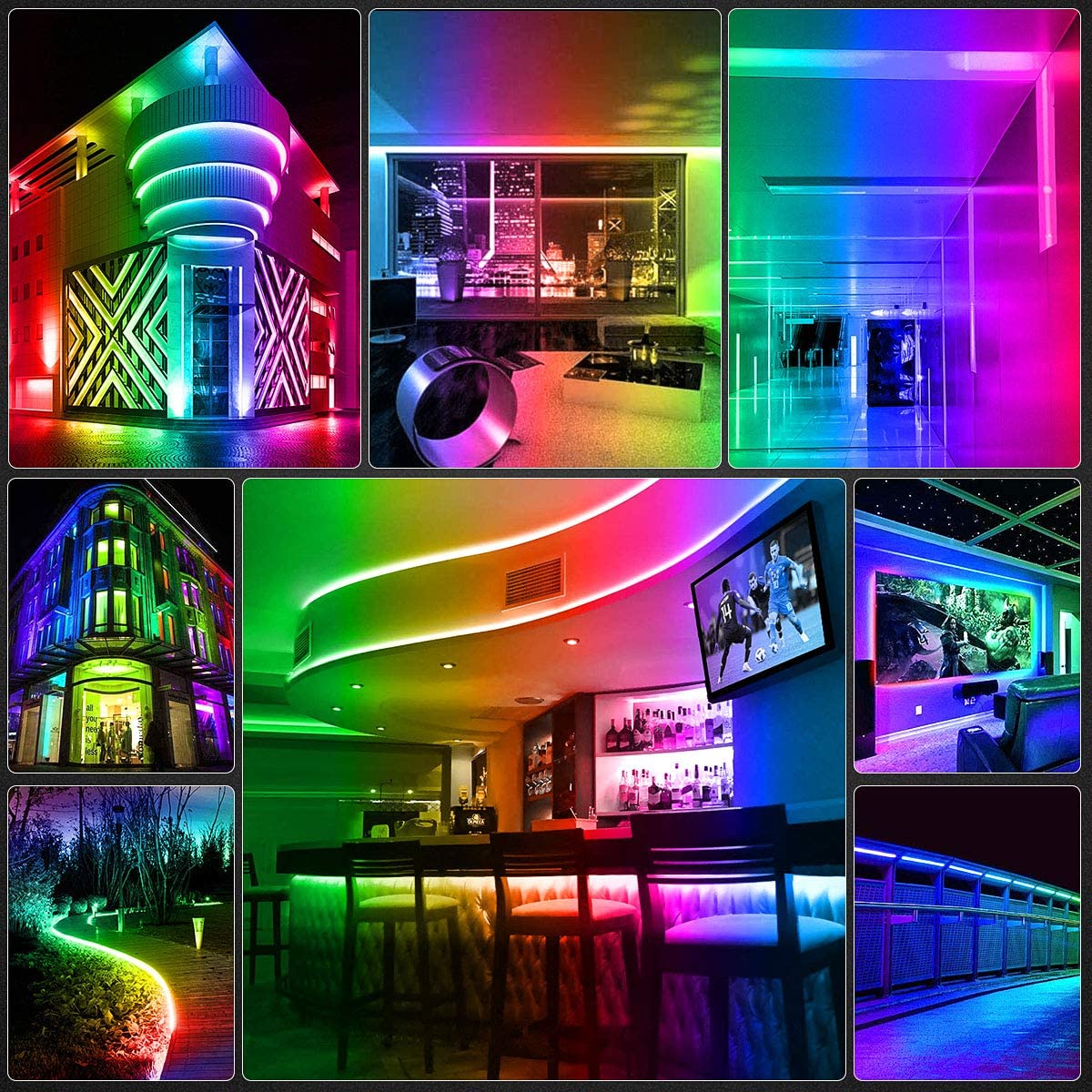

Users praise WS2812B for its versatility and vibrant colors. Common applications include:
- Home Ambiance: Backlighting for TVs, monitors, and desks.
- Gaming Setups: Synchronizing lights with in-game events or music.
- Architectural Lighting: Accentuating building outlines and interior designs.
- DIY Projects: Creating custom art installations, music visualizers, and holiday decorations.
A common critique is the need for a robust power supply and potential data signal degradation over long runs (beyond 2-3 meters without signal boosting).
After-Sales Service & Warranty
Most reputable suppliers offer a warranty period, typically ranging from 1 to 3 years. The specific product page mentions a "1-Year Warranty". It's crucial to:
- Verify the warranty terms with the seller before purchasing.
- Keep the original packaging and invoice for warranty claims.
- Understand what the warranty covers (e.g., manufacturing defects, premature LED failure).
Common Search Terms & Related Keywords
To find more information or similar products, users often search for:
- By Product Type: addressable led strip, programmable rgb strip, smart pixel tape, NeoPixel strip (Adafruit's brand).
- By Technical Specs: 5v rgb strip, 5050 rgbic led strip, individually addressable led, ws2812b arduino, ws2812b raspberry pi.
- By Application: tv backlight led strip, gaming room lights, home decoration lights, outdoor pixel light.
- By Control: app controlled led strip, voice controlled lights, music sync led strip.
- Comparisons: ws2812b vs ws2811, ws2812b vs sk6812, 5050 vs 3535 led.
Disclaimer: Specifications and features are based on typical product data. Always confirm the exact details with your supplier before making a purchase.
