WS2812B LED Strip Light - Ledsune Brand, DC5V, Addressable RGB, IP65/67/68 Waterproof

Product Usage and Installation Guide

The WS2812B is an addressable RGB LED strip where each LED can be controlled individually, allowing for complex and dynamic lighting effects. Proper installation is crucial for optimal performance and safety.

Power Supply Requirements

WS2812B LED strips require a stable 5V DC power supply. Using a higher voltage, such as 12V, can permanently damage the LEDs. The required current depends on the number of LEDs and their brightness. As a general rule, each LED can draw up to 60mA at maximum white brightness. For a 5-meter strip with 60 LEDs/meter, a 5V/9A power supply is recommended for full brightness operation.

Wiring and Connections

• Data Line: Connect the strip's data input (DIN) to a microcontroller (like Arduino or ESP8266) digital pin. A 220-470 ohm resistor should be added in series on the data line to reduce noise.
• Power Lines: Connect the VCC (5V) and GND from the power supply directly to the strip. For longer strips, inject power at both ends to prevent voltage drop and color inconsistency.
• Capacitor: Adding a 100-1000uF capacitor across the power supply terminals (VCC and GND) near the strip helps smooth out power fluctuations.

Control and Programming

To program the WS2812B, you need a compatible library. Popular options include:

• FastLED Library: A powerful and widely used library for Arduino that supports a vast range of effects and color palettes.
• WLED Project: A feature-rich firmware for ESP8266/ESP32 boards that allows control over Wi-Fi, integrating with platforms like Home Assistant for smart home automation.

Purchasing Information

WS2812B LED strips are widely available on e-commerce platforms like 6688789, eBay, and Taobao. Prices vary based on LED density, waterproof rating, and quantity.

Key Purchasing Considerations:

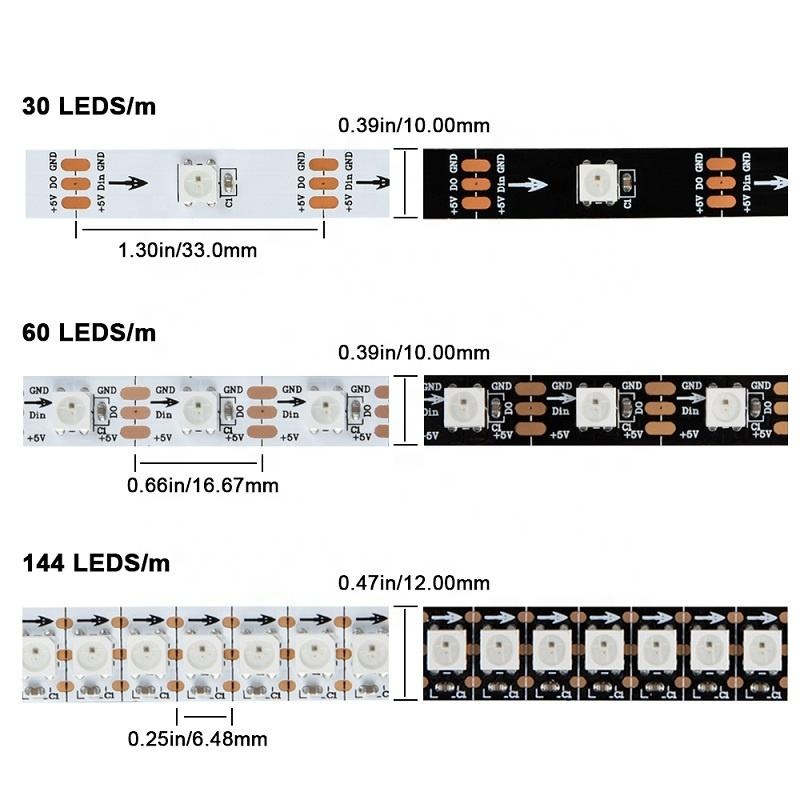

• LED Density: Choose 30 LEDs/m for basic effects, 60 LEDs/m for a smoother look, and 144 LEDs/m for high-density applications.

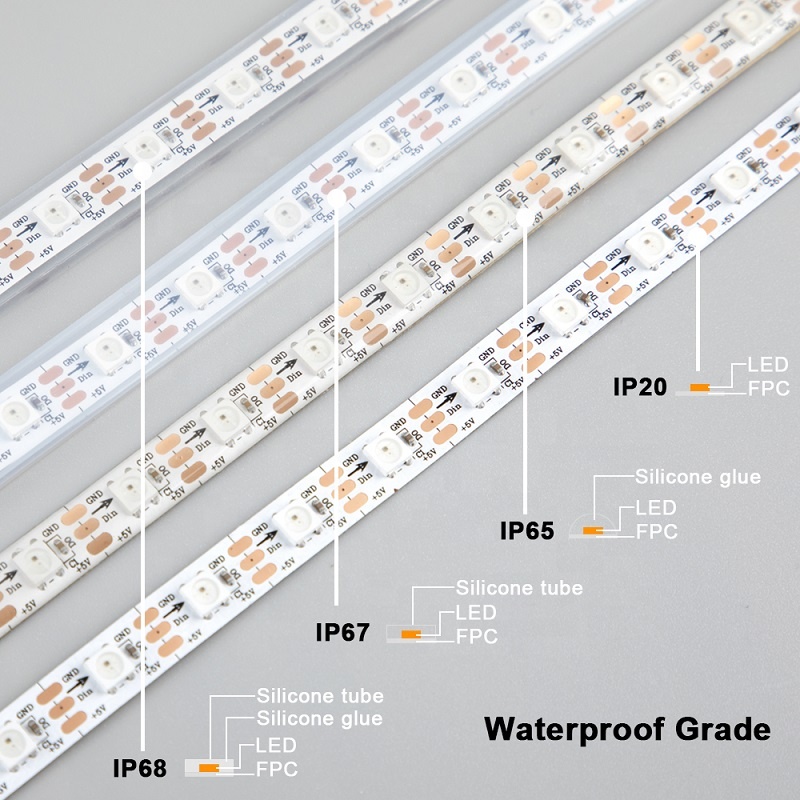

• Waterproof Rating: IP20 is for indoor use. IP65 is dust-tight and protected against water jets, suitable for kitchens and bathrooms. IP67/68 can withstand temporary or continuous immersion, ideal for outdoor and landscape lighting.
• PCB Color: White PCB blends in with light surfaces, while black PCB is less visible against dark backgrounds.

Reviews and Performance Evaluation

WS2812B LED strips are popular for their versatility, color accuracy, and ease of control. However, they have specific requirements and potential drawbacks.

Advantages:

• Individual Addressability: Control each LED's color and brightness independently.
• Single-Wire Control: Requires only one digital pin from a microcontroller to control hundreds of LEDs.
• Wide Compatibility: Works with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontrollers.
• Rich Ecosystem: Extensive community support, libraries, and pre-built projects (like WLED) are available.

Disadvantages and Common Issues:

• Power Sensitivity: Requires a stable 5V power supply. Incorrect voltage or insufficient current can lead to dimming, color shifts, or damage.
• Timing Critical: The communication protocol is timing-sensitive and may require precise code or specific hardware (like PWM/DMA) on some microcontrollers.
• Voltage Drop: On long strips, the voltage can drop along the length, causing LEDs at the far end to appear dimmer or change color. Power injection is often necessary.
• Heat Generation: At full brightness, especially with white light, the strip can generate significant heat. Ensure adequate ventilation.
